General Information

  MOUNTING:

Pressure instruments can be connected directly to a Diaphragm Seal or can be remotely mounted and connected with capillary tubing. Lengths up to 100 feet of tubing can be provided in 1/8" outside diameter, stainless steel tubing. This tubing can be protected with stainless steel flexible spiral armor.

  TEMPERATURE:

All Type T and M Zeals with metal process flanges can operate up to 500║ F. Type V with metal process flanges can operate up to 300║ F. Type W Zeals with metal process flanges can operate at higher temperatures. Consult with factory.

     How to Order

Mounting

Temperature
Construction Details

Flanged Type Models

Threaded Type Models
Zavoda Patented Features

Teflon "Snap-In" Diaphragm

Metal "Snap-In" Diaphragm

Spoke Corrugations

Teflon Lined Adapter Ring
Zeal Numbering System

Material Code Letter Chart

Options Code Letter Chart

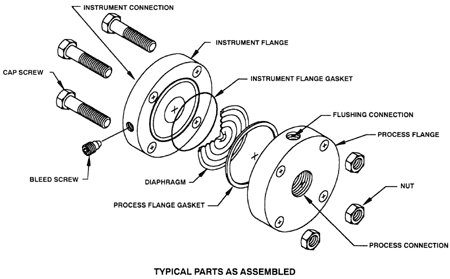

TYPICAL PARTS ASSEMBLED
